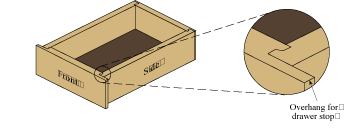

The key to success when constructing quality drawers is in the
quality of the drawer lock bit you use. With CMT Drawer Lock
Bits you can make strong, perfectly fitting joints quickly and

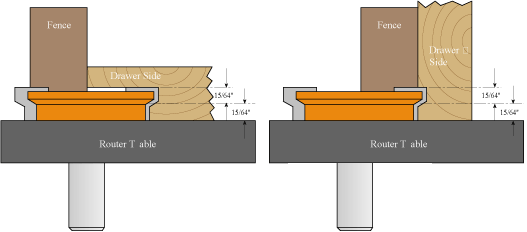

easily. As illustrated below, mill the drawer front with the
inside face down flat on the work table. Mill the sides of the
drawer with the inside face placed vertical to the bit and fence
and perpendicular to the table. These bits are to be used on
router tables only and are not to be used on hand held routers. |
 |
|
|
|
|
|
|
Item No. |
Shank |
Overall
Dia. |
Cutting
Length |
|
855.002.11 |
1/4 |
1-1/4” |
1/2” |
|
855.502.11 |
1/2 |
2” |
1/2” |
|
|
